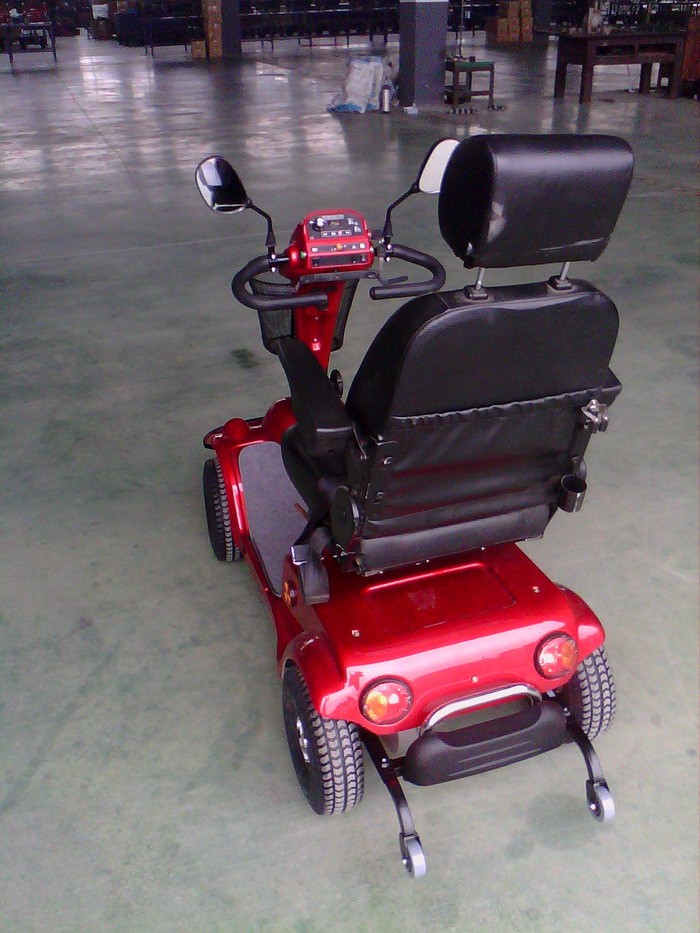

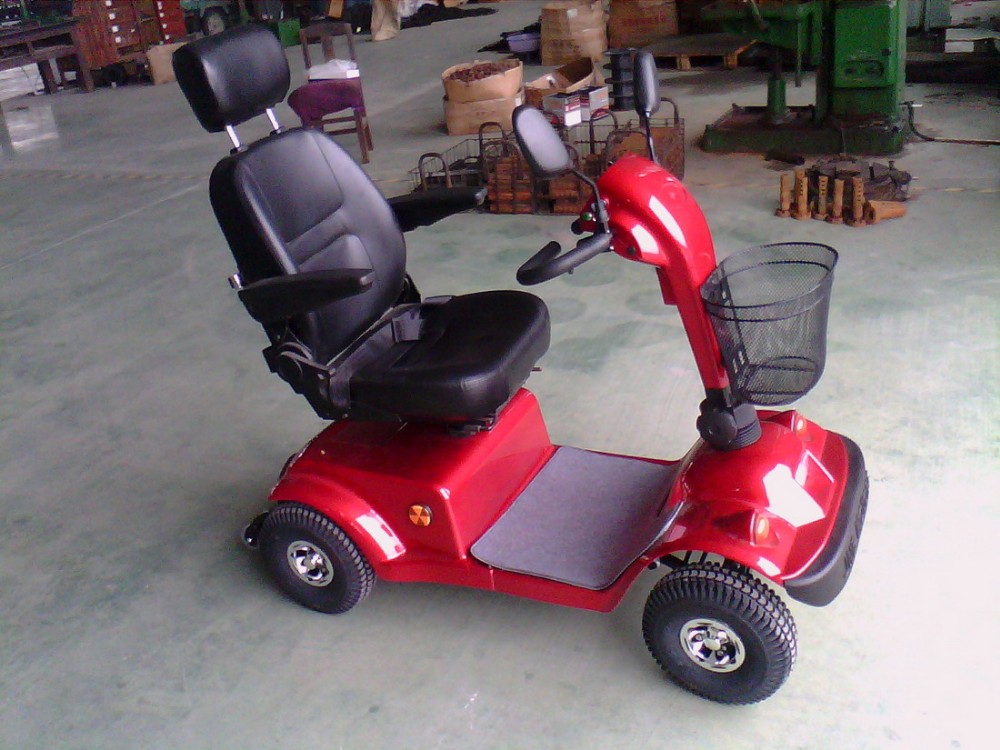

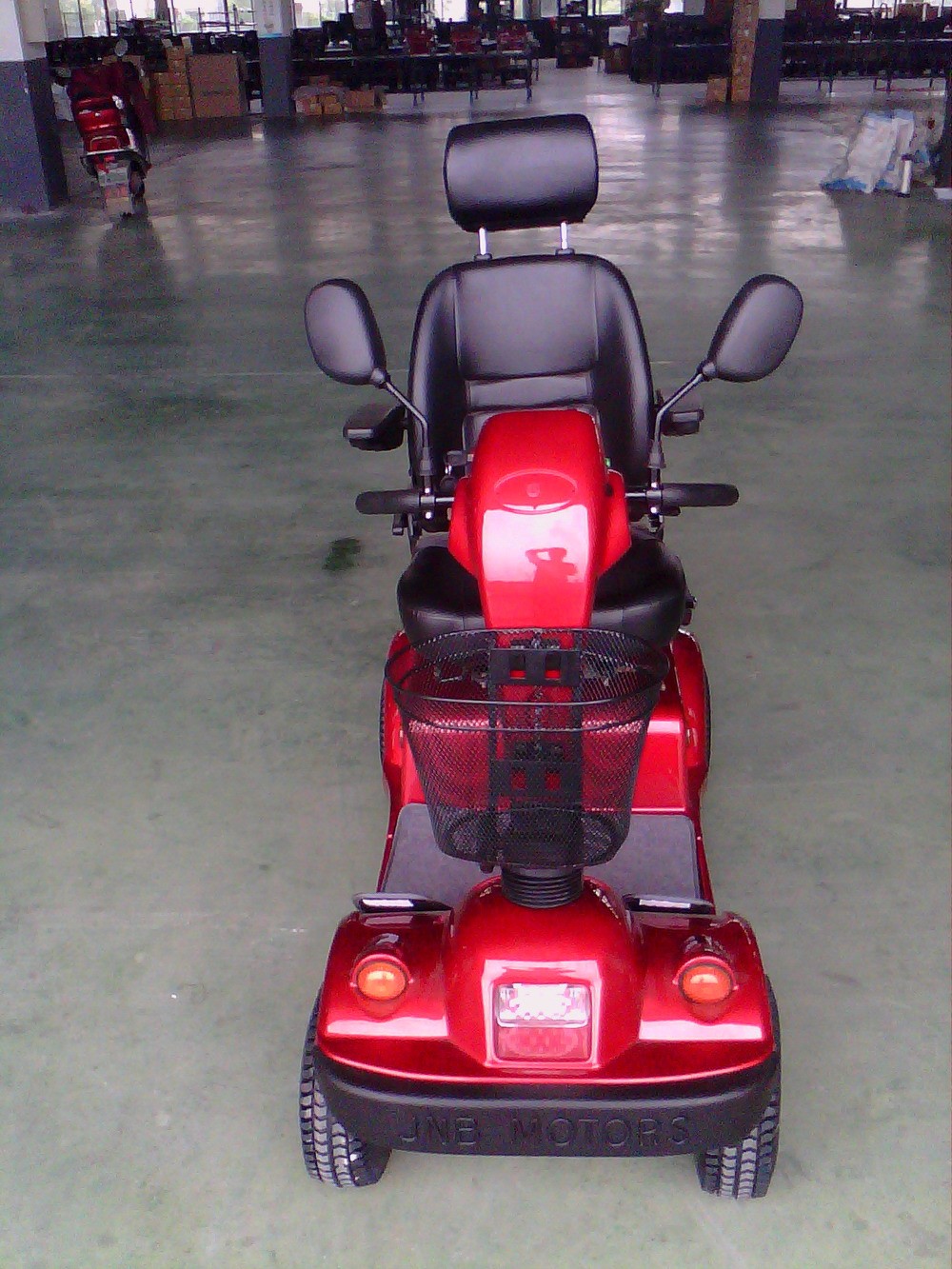

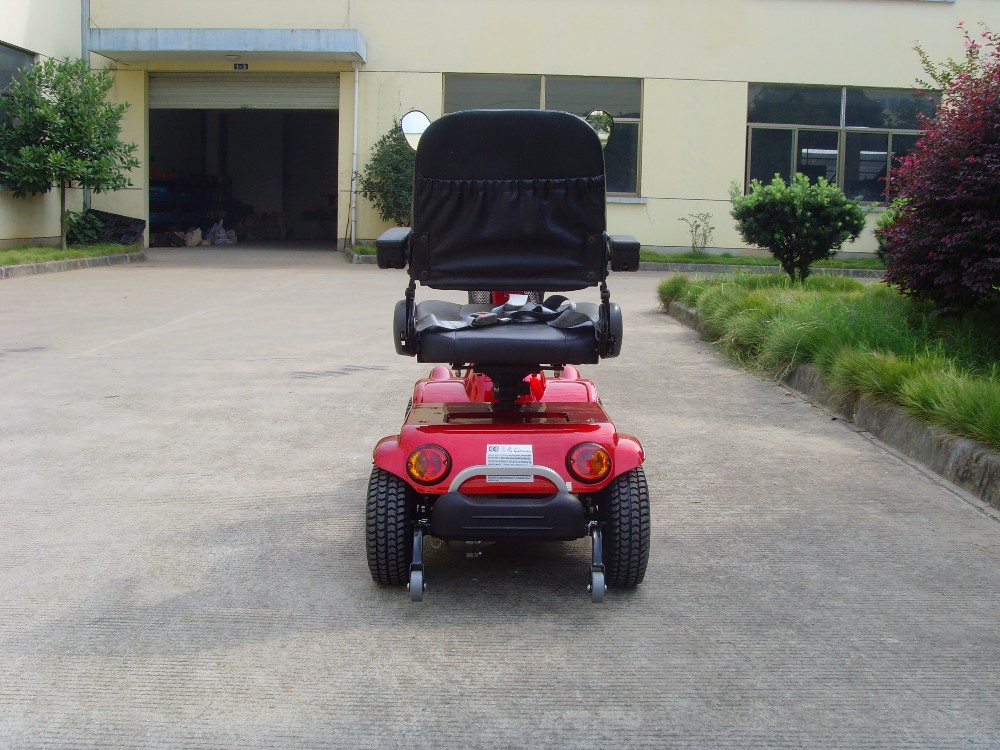

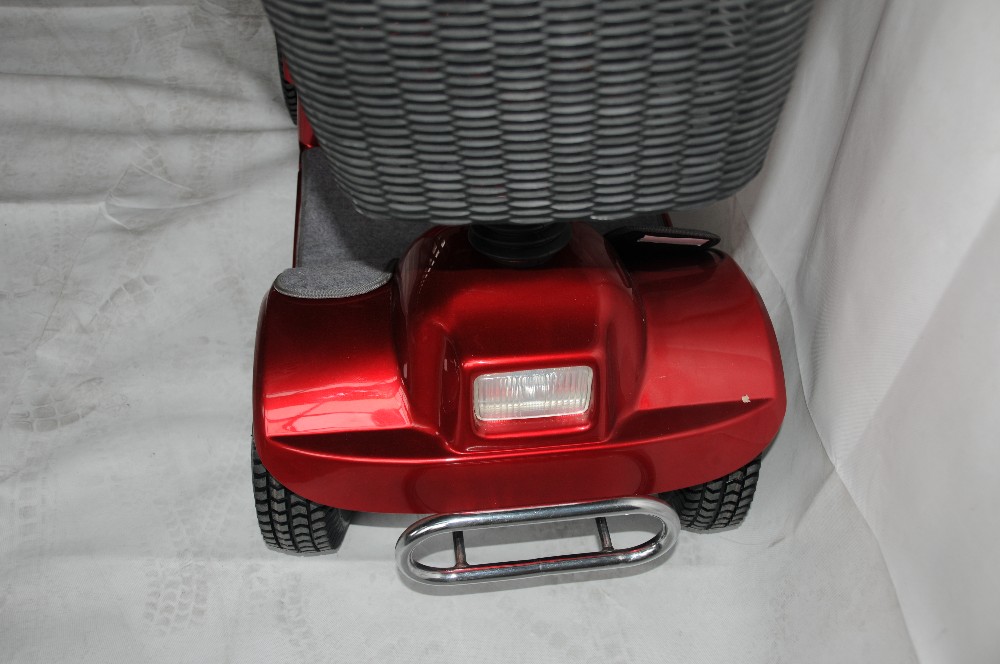

400W Four Wheel Electric Mobility Scooter for Disabled People
Key Features
✔ Large carry basket. Easy operation, fashionable design.
✔ Comfortable Deluxe Captain's style seat.
✔ 330lbs user weight capacity. Sturdy and stylish steel tubing.
✔ Dual-direction rotation seat. Quick release tiller angle adjustment.
✔ Height & width adjustable flip-up armrests.
✔ Adjustable headrest height. Comes standard with anti tippers.
✔ Good performance on indoor and smooth outdoor surfaces.
✔ Rear-wheel drive and compact size for optimum maneuverability.
Technical Specifications
| Product Name | QX-04-02A |
| Weight Capacity | 150kgs (330lbs) |
| Battery | 12V/38AH x 2pcs (Lead-acid maintenance free) |
| Charger | AC100-240V 50/60HZ 2A; Output: 24V-4A |
| Controller | PG S-drive 70A or 90A (option) |
| Motor | 24V / 400W |
| Gearbox | 19.75:1 (Transaxle with electromagnetic brake) |
| Total Weight | Gross: 125kgs / Net: 115kgs (with batteries) |
| Overall Dimension | 1410 x 625 x 1220mm (55.51" x 24.61" x 48.03") |
| Tires (Front/Rear) | 12" 4.00-4 Black (Grey) pneumatic tires |
| Incline Capability | 12 Degrees |
| Turning Radius | 1300mm (51.18") |
| Max Range | 45-55km per full charge |
| Recharge Time | 6-8 hours |
| Max Speed | 12km/h (Forward), 4-8km/h (Backward) |
Packing & Delivery

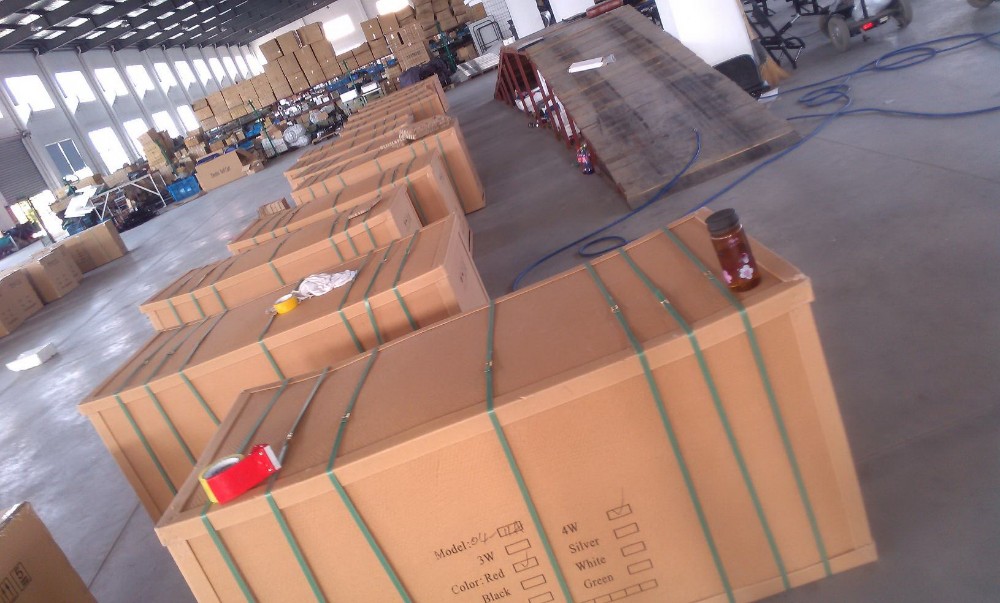

Package Details: Separated into 2 parts for packing (body frame and seat). Packed by Honeycomb carton box with foam inside. Outside packing features 8 layers export carton + Cane + Iron shelf for maximum protection.
Expertise & Quality
Developing mobility scooters and golf carts since 2009, our products have been perfected through years of experience and customer feedback. With a 15,000 square meter plant, we ensure efficient delivery, capable of shipping a 40' container within 2 weeks.

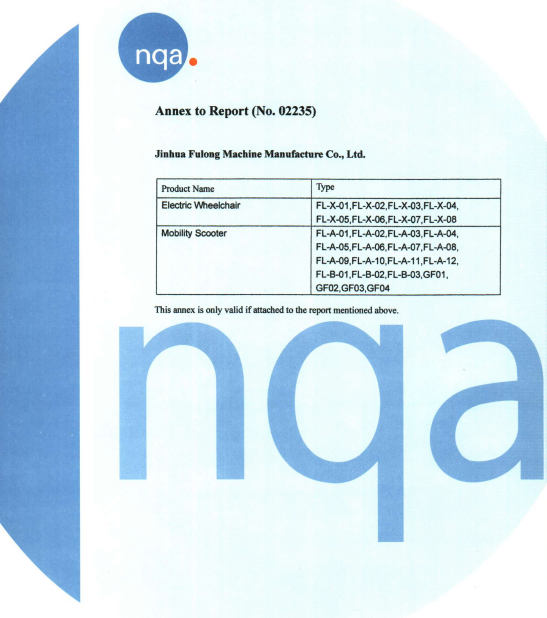

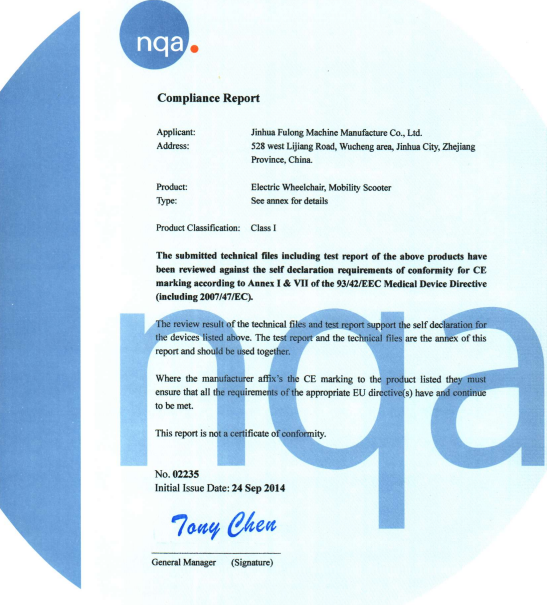

Certified Quality: Our products have approved ISO9001:2000, CE, and TUV 13485 certifications.
Our Services
🛠 OEM Services
- Custom logo placement on products.
- Custom logo printing on carton boxes.
- Accessory modification based on requests.
🛡 After-Sale Service
- One year warranty under normal use.
- 24-hour response time for quality issues.
- Spare parts or product replacement for special cases.
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a professional factory specializing in mobility solutions.
Q: How long is the delivery time?
A: Generally, it is 5-7 days for sample orders and 15-20 days for container orders, depending on the quantity.
Q: Do you provide samples?
A: Yes, samples are available, but the sample charge and freight cost must be covered by the customer.
Q: What are your terms of payment?
A: For payments <= $1500, 100% in advance. For payments >= $1500, 30% T/T in advance, with the balance due before shipment.
Q: What is the warranty policy?
A: We provide a 3-year warranty for the frame. The battery, motor, transaxle, electromagnetic brake, controller, and other parts are covered for one year.
Q: Can you customize the scooter accessories?
A: Yes, we provide full OEM services and can modify accessories and branding according to your specific market requirements.
